Lollartron Traditional
Item #: 10-408
Product Details
Lollartron™ Traditional Vintage—Filter'Tron Mount
Using a particularly magical ‘63 Gretsch® Country Gentleman® as the tonal reference, the Vintage set
uses Alnico 2 magnets and has the clarity and punch players expect from a classic Filter’Tron with the
treble strings delivering high frequencies that are focused on the fundamental of the note, resulting in
a fat, full tone that won’t get muddy.
Pickup Mounting Options: To choose the correct pickup mounting option
for your particular guitar, see information further down the page.
Avg. DC: Neck 5.2k, Bridge 6.2k (Read about DC resistance)
Recommended Potentiometers: 500k
Recommended Capacitor: 0.022μF
Lollartron™ Traditional Mod—Filter'Tron Mount
Compared to the Vintage set which uses Alnico 2 magnets, the Mod set uses Alnico 5 magnets and is
spankier and punchier—but never gets brittle or spiky. The tone is glassy and chimey; typical of an early
rock ‘n roll sound.

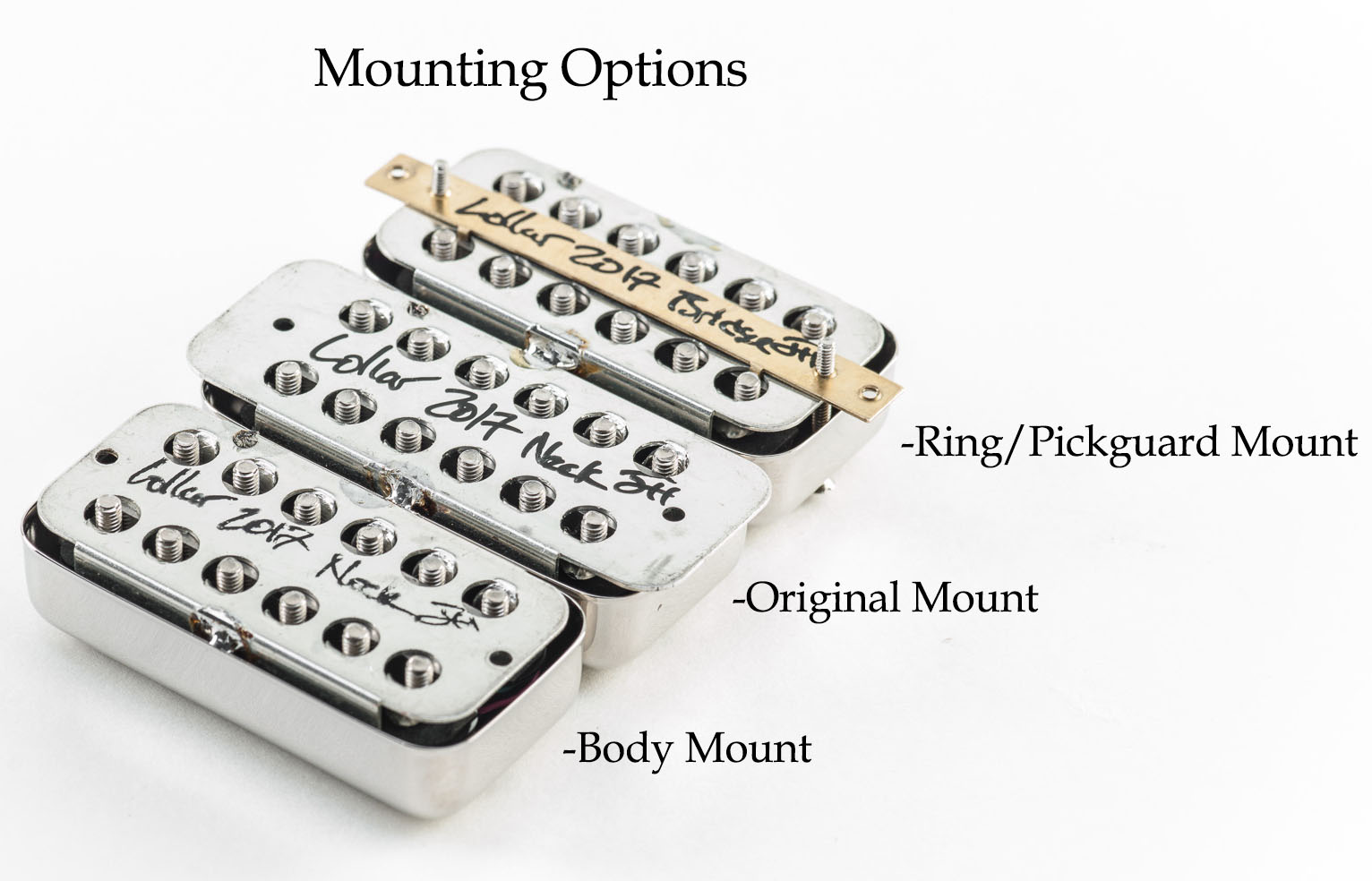

Mounting Options
for Lollartron Traditional Pickups
Option A
For mounting pickups directly onto the center
block of a Gretsch® semi-hollowbody guitar.
Choose this option if the ring around your existing pickup has no pickup mounting holes AND the baseplate of your pickup extends beyond the pickup
cover.
NOTE: We recommend that you remove your guitar’s ring to determine if your baseplate extends beyond the pickup cover.
▶ Pickup Dimensions & Included Mounting Hardware
Option B
For mounting pickups directly onto solidbody
guitars, like the Fender® Cabronita.
Choose this option if the baseplate of your existing pickup does not extend beyond the pickup cover AND either a) there is no ring around your existing pickup
OR, b) you have a ring without pickup mounting holes.
NOTE: We recommend that you remove your guitar’s ring to confirm the baseplate does not extend beyond the pickup cover.
▶ Pickup Dimensions & Included Mounting Hardware
Option C
For hanging from a guitar’s plastic mounting
ring or pickguard.
Ring Mounting: The ring around your existing pickup should have either 2 or 3 pickup mounting holes, like those shown to the right. Mounting hardware will
be included with your pickup(s).
Pickguard Mounting: You may need to drill holes in your pickguard to align with the screw holes in the mounting hardware we provide.
▶ Pickup Dimensions & Included Mounting Hardware
Lollartron Traditional Pickups
Lollartron Traditional Pickups
What They Are Saying
Cover Colors

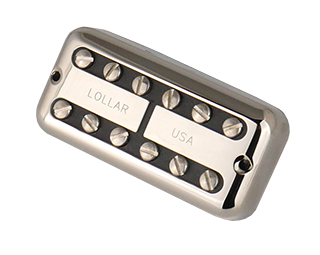

Nickel

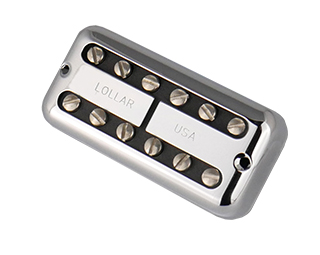

Chrome

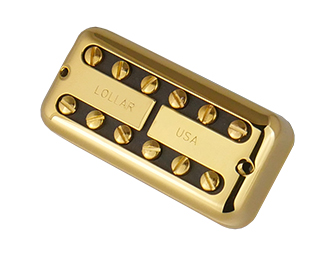

Gold

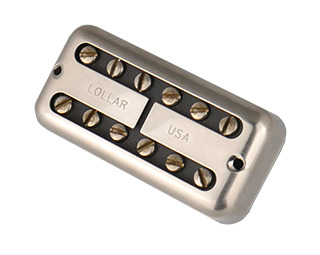

Lightly-aged Nickel

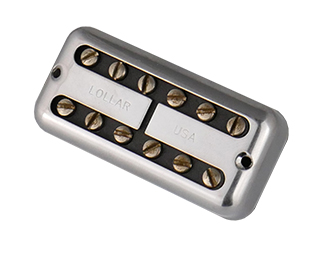

Lightly-aged Chrome

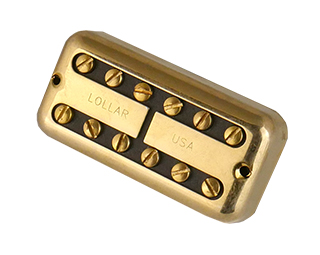

Lightly-aged Gold
Colors shown here may vary slightly from actual colors due to differences in computer monitors.
