Raw Power
Item #: 10-414
Optional Add-Ons
Product Details
The Stooges guitarist James Williamson left his T-Top-equipped 1969 Les Paul® at our shop so we could reference it to design our Raw Power™ humbuckers. The result is a more aggressive sound than you get with our standard Imperial®. The Raw Power™ has a perceived fullness due to its natural compression and the neck pickup is slightly hotter than the bridge pickup, like James’ original set.
For more background on this pickup you can read our blog post James Williamson And The Making Of The Raw Power Humbucker.
Avg. DC: Neck 8.1K, Bridge 7.9K, High Wind Bridge 8.4K (Read about DC resistance)
Recommended Potentiometers: 500k
Recommended Capacitor: 0.022μF
'50s-style Pre-wired Kit for Les Pauls
Upgrading the electronics in a Les Paul® yourself couldn’t be easier than it is with our Lollar Pre-wired Kits. The kits are hand-wired in our shop and meet Jason Lollar’s preferred specifications. This kit can be used in just about any Les Paul equipped with two pickups that each have their own volume and tone controls.
Whether you’re installing new pickups and want high-quality electronics to go with them, or you want to upgrade the stock electronics in your Les Paul®, our pre-wired kits are a great option. We’ve done most of the work so all that’s left for you to do is install the kit in your guitar and solder in your pickups, output jack and switch.
Pickup Dimensions
Lollar Raw Power Pickups
What They Are Saying
Standard Covers

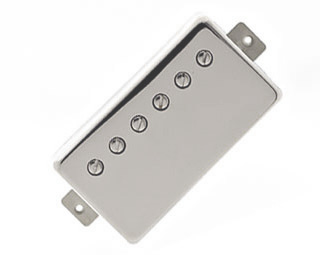

Nickel

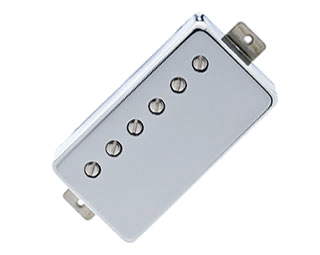

Chrome
Gold

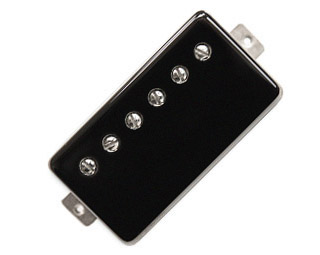

Black Chrome

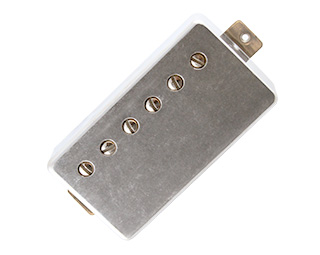

Lightly-aged Nickel

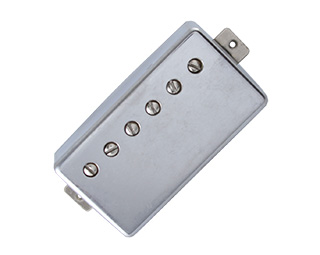

Lightly-Aged Chrome

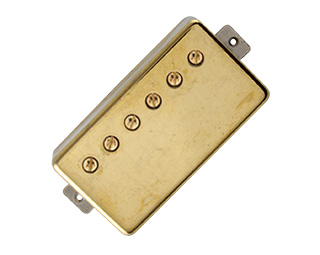

Lightly-Aged Gold
Uncovered Double Black
Uncovered Zebra
Uncovered Reversed Zebra

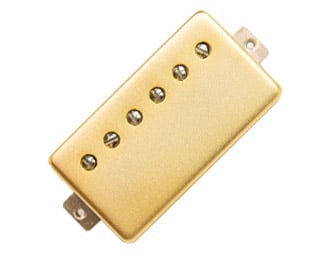

Satin Gold

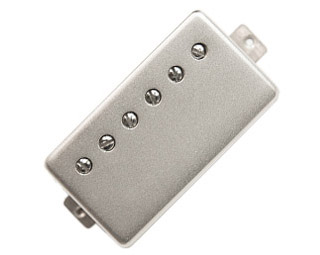

Satin Nickel

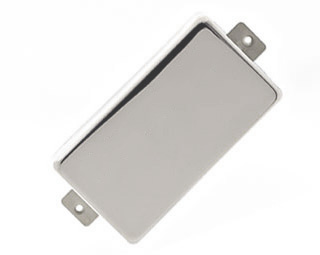

No-hole Nickel

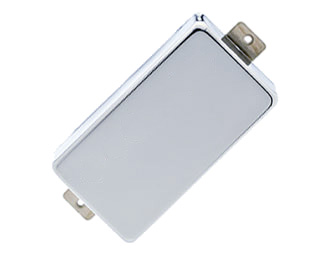

No-hole Chrome
No-hole Gold

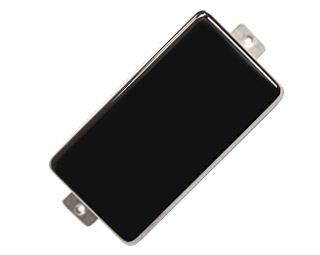

No-hole Black Chrome
No-hole Lightly-aged Nickel

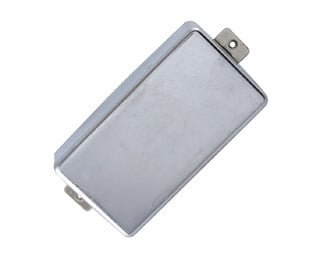

No-hole Lightly-aged Chrome

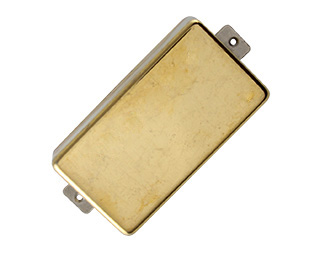

No-hole Lightly-aged Gold

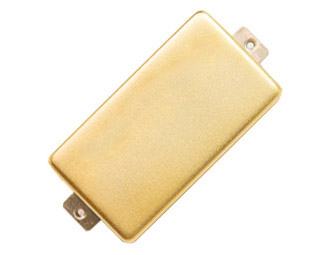

No-hole Satin Gold

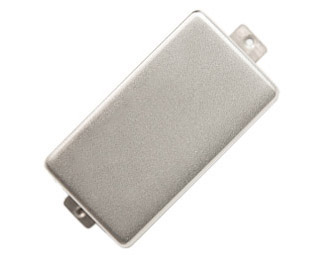

No-hole Satin Nickel
Colors shown here may vary slightly from actual colors due to differences in computer monitors.
Made-to-Order Covers

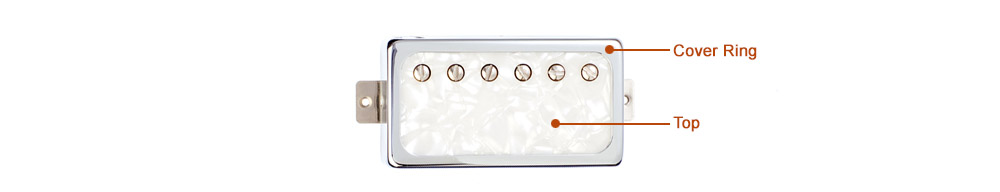

Choose any combination of Cover Ring and Top shown below.
NOTE: Pickups with Made-to-Order covers may require additional time to build and fulfill.

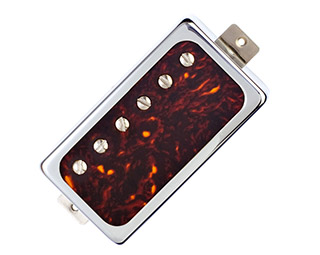

Chrome/Tortoise

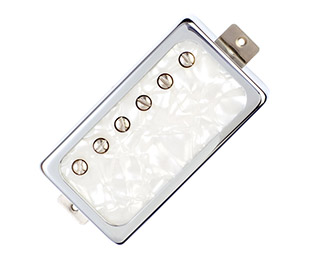

Chrome/Pearl

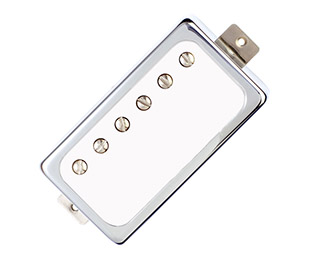

Chrome/White
Chrome/Matte Black

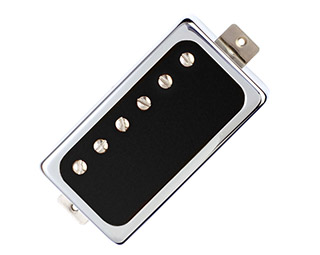

Chrome/Gloss Black

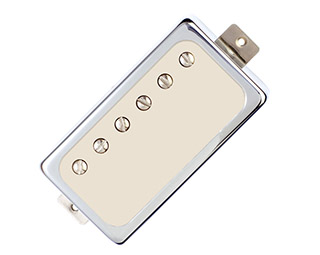

Chrome/Parchment
Chrome/Cream

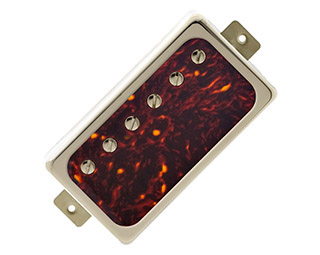

Nickel/Tortoise

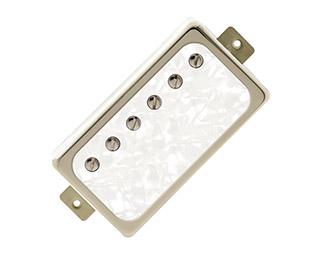

Nickel/Pearl

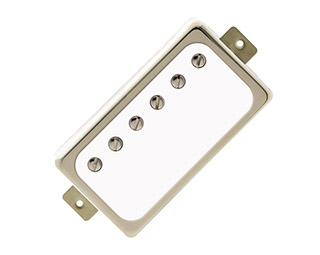

Nickel/White

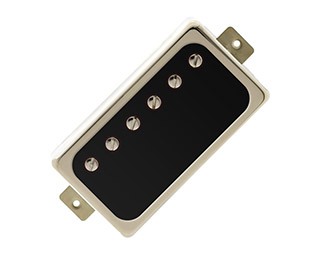

Nickel/Matte Black

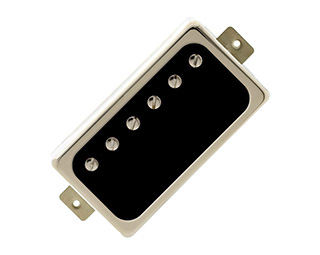

Nickel/Gloss Black

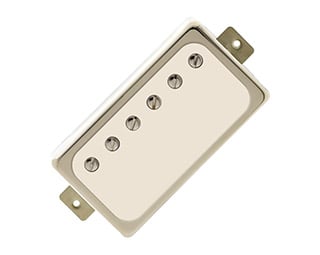

Nickel/Parchment
Nickel/Cream

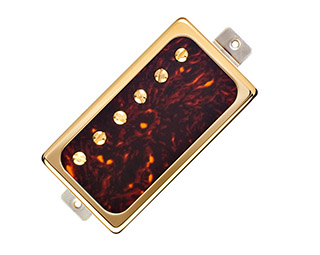

Gold/Tortoise

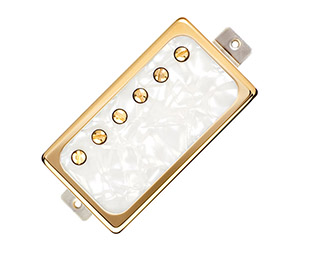

Gold/Pearl

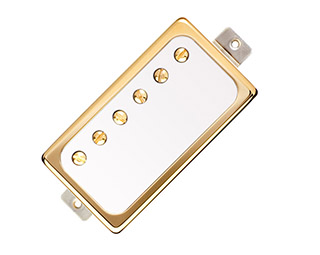

Gold/White

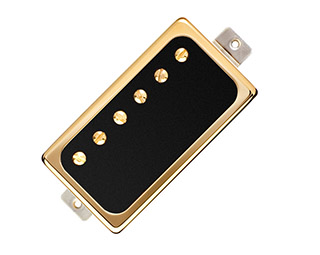

Gold/Matte Black
Gold/Gloss Black

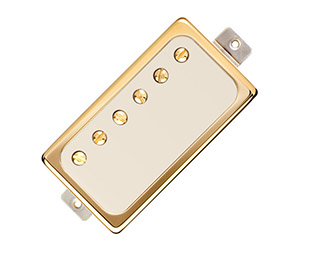

Gold/Parchment
Gold/Cream
Black Chrome/Tortoise
Black Chrome/Pearl

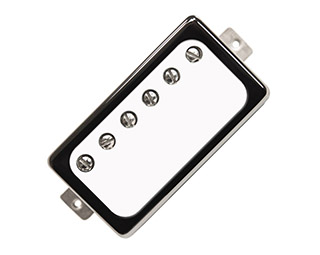

Black Chrome/White

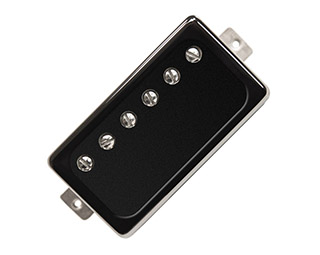

Black Chrome/Matte Black

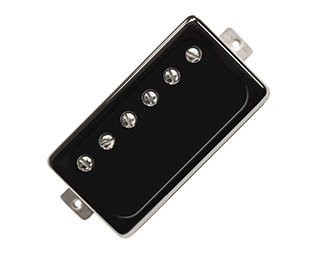

Black Chrome/Gloss Black

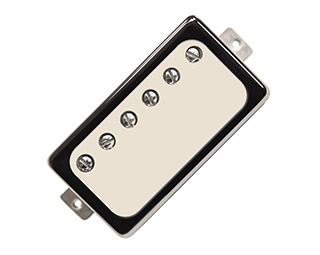

Black Chrome/Parchment

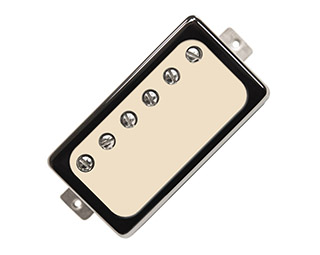

Black Chrome/Cream
Colors shown here may vary slightly from actual colors due to differences in computer monitors.
Frequently Asked Questions
Is there a sound difference between pickups with covers and without?
Metal covers can have some effect on tone, though it is often subtle. The metal parts can attenuate some of the highs, meaning that covered pickups will be a touch darker and warmer. Uncovered pickups are a bit more bright or focused.
Note that we do not recommend removing your covers to compare the difference. Breaking the solder joint that attaches the cover will void your warranty.
What’s the deal with single versus four-conductor pickups?
Single conductor leads have a hot lead inside a braided metal exterior, which functions as ground. Single conductor wiring is appropriate for traditional Les Paul-style wiring with a three-way switch and separate volume & tone controls for each pickup.
Four-conductor wiring gives each of the humbucker’s two coils their own leads. This enables you to take advantage of more complex switching like in/out of phase, series/parallel, or coil splitting. If your guitar has extra mini-switches or push/pull pots for these options, you’re likely going to want four conductor.
Can I get unpotted pickups?
Though most manufacturers did not wax pot their pickups in the 1950s and 60s, we choose to pot our pickups because of the strength and stability it adds to the coil. We frequently see coils shifting in vintage and modern unpotted pickups which often leads to the need of costly repair or outright replacement. We feel that the added stability and protection of the coil outweighs any perceived improvement in tone.
What values of potentiometers and capacitors do you recommend for humbucking pickups?
The most common/traditional choices are 500k pots (both volume and tone) and .022μF caps—and these are the values we typically recommend. That said, there are no hard and fast rules. You can read more about how different pot and cap values affect tone in this two-part blog post: Part I - Pots, Part II - Caps.
How far from my strings should I set my Raw Power pickups?
Generally, as close to the strings as possible while avoiding picking hand interference or magnetic pull.
Can I get an F-Spaced Raw Power Humbucker?
We do not offer an F-Spaced version of the Raw Power.
Which way do I orient my humbuckers during installation?
The conventional orientation is with the screw sides of each pickup on the outside (closest to the bridge and fingerboard).
Can't find an answer to your question? Try our general FAQ page or give us a call at 206-463-9838, M–F, 9AM–5PM Pacific Time.
